TYPICAL APPLICATIONS

The 3600 rpm are very popular vibrators
commonly used for various flow aid applications.

VE3/36/95
Small hoppers with tight clearance issues.
VE3/36/120
Small hoppers and small volumetric feeders
VE3/36/250 – VE3/36/400
Medium hoppers, small silos & small conveyors
VE3/36/660
Bins, Silos (cement, flour, coal & many more products)
VE3/36/1050 – VE3/36/1650
Aggregate hoppers in asphalt and concrete plants.
VE3/36/2200
Larger aggregate hopper and fine sand screens
VE3/36/2800
Large utility concrete forms using dry cast concrete.
VE3/36/ 3000 - VE3/36/4000
Large Hoppers with 10 Tons of product or more
VE3/36/5000 –VE3/36/20000
Medium to large size Concrete Pipe Forms

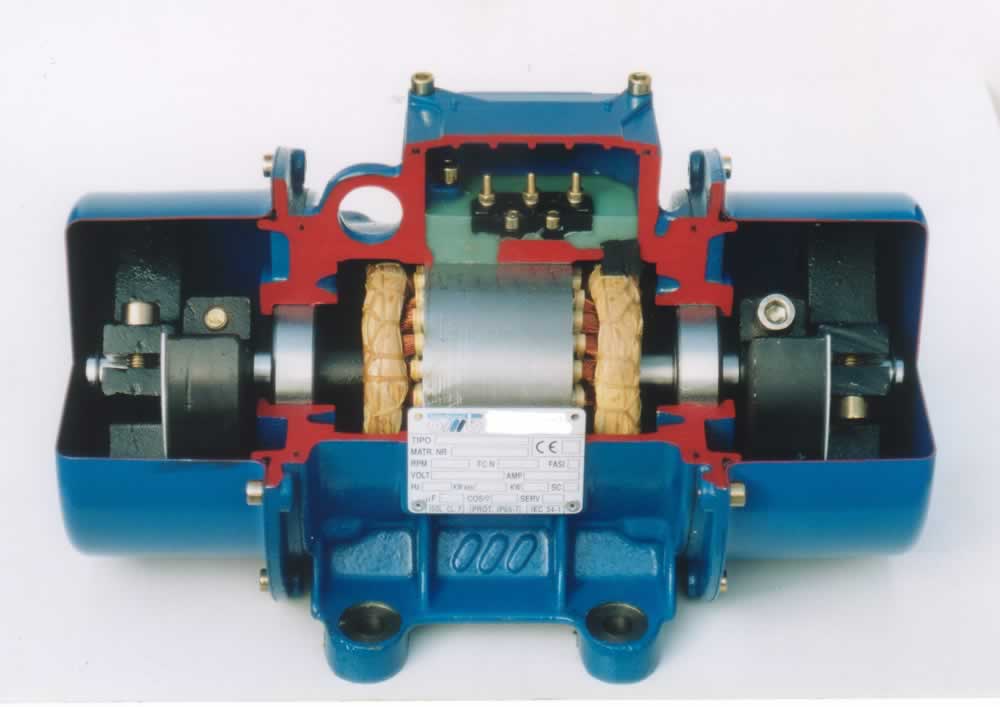

CUTAWAY

PERFORMANCE
MODEL
FORCE
OUTPUT
UNBALANCE
HP
AMP DRAW
460 V
AMP DRAW
230 V

STARTUP
CURRENT
MULTIPLIER

FRAME
WEIGHT

lbs
in -lbs
h.p.
Amps
Amps


lbs
VE3/36/95
114
0.34
0.15
0.2
0.4
3
0
9
VE3/36/95 XL
167
0.45
0.15
0.2
0.4
3
0
9
VE3/36/120
167
0.45
0.22
0.28
0.56
3.2
1
10
VE3/36/120 XL
208
0.56
0.22
0.28
0.56
3.2
1
11
VE3/36/250
297
0.81
0.25
0.32
0.64
3
1
11
VE3/36/400
398
1.08
0.28
0.34
0.68
3
1
12
VE3/36/660
653
1.94
0.34
0.6
1.2
3.7
2
18
VE3/36/660 XL
812
2.41
0.34
0.65
1.3
3.7
2
19
VE3/36/900
975
2.90
0.54
0.74
1.48
3.9
2
20
VE3/36/1050
1511
4.44
0.72
0.85
1.7
4.6
3
42
VE3/36/1650
1815
5.3
0.85
1
2
4
4A
61
VE3/36/2200
2420
7
1
1.2
2.4
5.1
4B
65
VE3/36/2800
3200
8.8
1.75
1.8
3.6
4.8
6
76
VE3/36/3000
3507
10
2
2.1
4.2
6
15A
97
VE3/36/4000
4400
12
2.7
2.9
5.8
5.5
15B
101
VE3/36/5000
5500
15
3.2
3.5
7
5.4
20
161
VE3/36/7000
7040
19
5.4
5.6
11
5.2
30
218
VE3/36/10000
10560
29
6.7
7.1
14
4.9
60
299
VE3/36/12000
13200
36
11
12
24
5.4
70A
425
VE3/36/20000
19570
53
13
14
27
4.8
70B
517
DIMENSIONS
MODEL
A
B
C
D
E
F
G
L
L1
M
M1
N
P
Q
R
S
BOLTS
VE3/36/95
7.65
4.92
4.8
3.42
3.23
1.81
1.38
2.44

3.86-4.17

0.35
3.89
1.18
1.22
0.32
4
VE3/36/95 XL
7.65
4.92
4.8
3.42
3.23
1.81
1.38
2.44

3.86-4.17

0.35
3.89
1.18
1.22
0.32
4
VE3/36/120
8.34
5.9
5.7
4.45
4.13
2.36
1.81
2.75
2.44-2.91
5.12
4.17
0.35
3.9
1.18
1.37
0.39
4
VE3/36/120 XL
8.34
5.9
5.7
4.45
4.13
2.36
1.81
2.75
2.44-2.91
5.12
4.17
0.35
3.9
1.18
1.37
0.39
4
VE3/36/250
8.34
5.9
5.7
4.45
4.13
2.36
1.81
2.75
2.44-2.91
5.12
4.17
0.35
3.9
1.18
1.37
0.39
4
VE3/36/400
8.34
5.9
5.7
4.45
4.13
2.36
1.81
2.75
2.44-2.91
5.12
4.17
0.35
3.9
1.18
1.37
0.39
4
VE3/36/660
10.24
6.54
7.28
6.3
5.12
2.95
1.97
3.54
3.54
4.92
5.51
0.51
4.72
1.18
1.57
0.47
4
VE3/36/660 XL
10.24
6.54
7.28
6.3
5.12
2.95
1.97
3.54
3.54
4.92
5.51
0.51
4.72
1.18
1.57
0.47
4
VE3/36/900
10.24
6.54
7.28
6.3
5.12
2.95
1.97
3.54
3.54
4.92
5.51
0.51
4.72
1.18
1.57
0.47
4
VE3/36/1050
11.34
7.48
8.07
7.36
5.94
3.35
2.13
4.13

5.51

0.51
5.35
1.3
1.57
0.63
4
VE3/36/1650
13.98
8.27
9.29
8.5
7.13
3.98
2.8
4.72

6.7

0.67
6.3
1.57
1.69
0.79
4
VE3/36/2200
13.98
8.27
9.29
8.5
7.13
3.98
2.8
4.72

6.7

0.67
6.3
1.57
1.69
0.79
4
VE3/36/2800
14.75
9.28
9.29
8.5
7.13
3.98
2.8
3.94

7.87

0.67
6.3
1.57
1.69
0.95
4
VE3/36/3000
17.56
9.65
10.24
10.16
8.62
4.8
3.39
5.51

7.48

0.67
7.48
1.57
1.77
0.98
4
VE3/36/4000
17.56
9.65
10.24
10.16
8.62
4.8
3.39
5.51

7.48

0.67
7.48
1.57
1.77
0.98
4
VE3/36/5000
20.47
10.83
12.2
10.94
9.41
5.2
4.17
6.1

8.86

0.83
8.07
1.97
2.17
1.18
4
VE3/36/7000
21.26
12.8
13.54
12.8
11.14
6.18
4.02
6.14

10.08

0.91
8.66
2.17
2.36
1.38
4
VE3/36/10000
23.23
13.39
14.72
13.98
12.17
6.77
4.17
7.09

11.02

0.98
9.45
2.36
2.56
1.57
4
VE3/36/12000
25.12
15.35
16.26
15.67
13.66
7.52
4.13
7.87

12.6

1.11
11.02
2.95
3.07
1.77
4
VE3/36/20000
25.67
15.35
16.26
15.67
13.66
6.52
4.13
7.87

12.6

1.11
11.02
2.95
3.07
1.77
4



WEIGHTS
BAG UNLOADER



BIN'S CONE
HOW TO SIZE A VIBRATOR

Weight of the material in the bin's cone

Force Output needed

Vibrator selection
800 lbs
80 lbs or more

VE3/36/95 or larger

1500 lbs
200 lbs or more
VE3/36/120 or larger
3000 lbs
300 lbs or more
VE3/36/250 or larger
6000 lbs
600 lbs or more
VE3/36/660 or larger
10000 lbs
1000 lbs or more
VE3/36/1050 or larger
20000 lbs
2000 lbs or more
VE3/36/2200 or larger
50000 lbs
5000 lbs or more
2 x VE3/36/2800 or larger



mounting plate
MOUNTING GUIDELINES
Vibrator selection
Minimum
C-Channel Size
Minimum Plate Thickness
Minimum Wall Thickness

VE3/36/95

3"
1/4"
12 gauge
VE3/36/120
3"
3/8"
12 gauge
from VE3/36/250
to VE3/36/400
4"
1/2"
11 gauge
VE3/36/660
4"
1/2"
10 gauge

from VE3/36/1050
to VE3/36/1650

5"
5/8"
3/16"
VE3/36/2200
6"
3/4"
1/4"
VE3/36/2800
6"
3/4"
3/8"

from VE3/36/3000
to VE3/36/4000

8"
1"
3/8"
