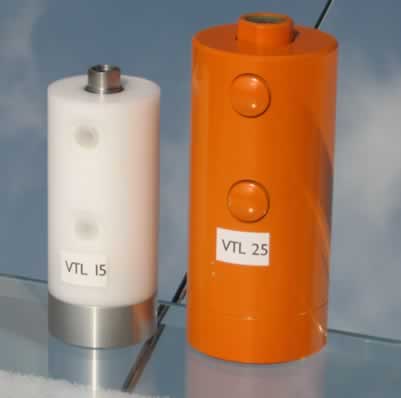

FEATURES

Vibrator stops instantly when air is turned off. The dribble feed is reduced dramatically when FAL is used in feeders applications.

For moving or feeding certain kinds of materials, sometimes low frequency and high amplitude are required. FAL and VTL have been designed to meet these needs.

By adjusting air flow the ideal product frequency can be reached.

Noise level never exceeds 75 dBA

The “housing mode” produces very high
amplitudes at much lower frequencies.



PERFORMANCE DATA
MODEL
HOUSING
FREQUENCY
FORCE OUTPUT
AIR CONSUMPTION

MATERIAL
30 PSI
60 PSI
90 PSI
30 PSI
60 PSI
90 PSI
30 PSI
60 PSI
90 PSI


vpm
vpm
vpm
lbs
lbs
lbs
cfm
cfm
cfm
FAL 8
Aluminum
2000
2800
3400
3
7
9
0.06
0.2
0.3
FAL 18
Aluminum
1400
1800
2200
13
25
55
0.5
1
2.3
FAL 25
Aluminum
1100
1600
2000
25
50
110
1
2
5
FAL 35
Aluminum
1200
1650
2000
45
90
200
2.8
6
15

VTL 15
Nylon
1800
2300
2800
9
13
16
0.8
1.9
1.1
VTL 16
Cast Iron
1900
2300
2600
10
14
19
0.7
1.6
2.5
VTL 25
Cast Iron
1600
1800
2300
20
35
50
2
4.5
7
VTL 40
Cast Iron
1400
1700
2000
45
70
100
3
8
14
VTL 55
Cast Iron
1600
2100
2500
100
170
250
5
15
25
VTL 85
Cast Iron
1800
2200
2600
160
210
250
11
22
32



HOW IT WORKS

A steel piston within an aluminum (or cast iron) body is made to move in a reciprocating motion thus generating vibrations without striking cylinder walls. The option of externally applied weights allows vibration force, amplitude and frequency to be adjusted.

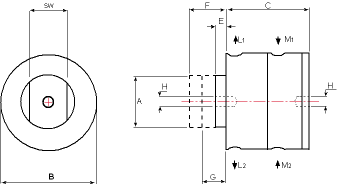

DIMENSIONS FAL-VTL
MODEL
A
B
C
E
F
G

H
mounting

L
outlet BSP
M
inlet (BSP)
Weight
lbs
FAL 8
0.31”
0.78”
3.50”
0.2
1.25
0.85
M-6
M-5
M-5
0.9
FAL 18
0.71”
1.89”
4.61”
0.32”
1.61”
1.26”
M 10
1/8”
1/8”
1.6
FAL 25
0.98”
2.36”
5.51”
0.32”
1.89”
1.50”
M 16
1/4”
1/4”
3.3
FAL 35
1.37”
3.07”
5.51”
0.55”
2.00”
1.61”
M 16
1/4”
1/4”
5.7

VTL 15
0.59
1.97
4.5
0.35
1.69
0.59
M10
1/8”
1/8”
1
VTL 16
0.63
1.93
4.33
0.2
1.57
0.72
M10
1/8”
1/8”
3
VTL 25
0.98
2.52
5.43
0.35
2.13
1.08
M16
1/4”
1/4”
7
VTL 40
1.6
3.31
5.51
0.47
2.24
0.95
M16
1/4”
1/4”
12
VTL 55
2.17
4.33
4.92
0.67
2.17
0.78
M20
3/8”
3/8”
17
VTL 85
3.35
6.3
4.8
0.79
2.17
0.66
M20
3/8”
3/8”
37
