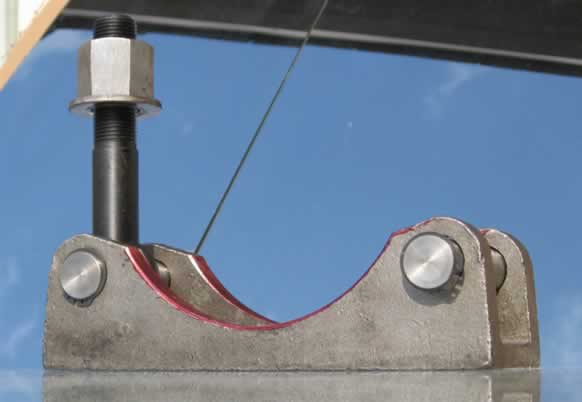

The quick disconnect lug bracket is the interface between the concrete vibrator and the form to be vibrated. |

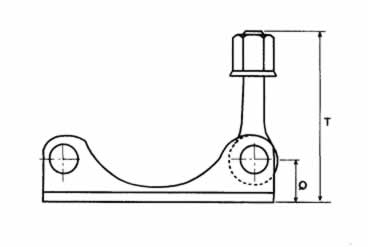

DIMENSIONS | |||||||
MODEL |
A |
B |
C |
D |
E |
Q |
T |
M 23 |
9.5" | 13.5" | 7.40" | 3.34" | 4.0" | 1.89" | 7.48" |
M 17 |
7.0" | 9.96" | 5.60" | 3.66" | 4.13" | 1.65" | 5.63" |
The Lug Bracket is made of heavy duty rugged cast steel.
Spare Part list
