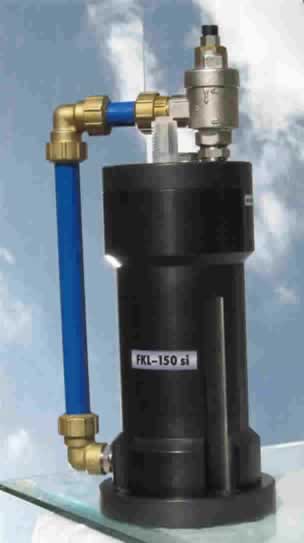

FKL is a special IMPACTOR that works like an automated sledgehammer. It produces sudden blows able to move sticky and clinging products.

With its high acceleration it is capable of moving products that don't usually respond to standard rotary or linear vibration.

Time between impacts is adjustable from 3 seconds up to
1 day depending on timer regulation

Being able to knock off stubborn material adhering to
hopper walls, FKL are outstanding at preventing
product bridging and ratholing.




PERFORMANCE   DATA
MODELS   FKL 100 FKL 150 FKL 200
PRESSURE PSI 50-100 50-100 50-100
FREQUENCY impacts per minute 0-20 0-20 0-20
ACCELERATION inch-lbs 270 450 800
IMPACT FORCE EQUIVALENT lbs 300 600 1200
CONSUMPTION cubic feet / impact 0.07 0.15 0.3
BIN WALL THICKNESS inches 1/8” -1/4” 3/16”-5/16” 1/4” - 1/2”
WEIGHT lbs 10 21 32

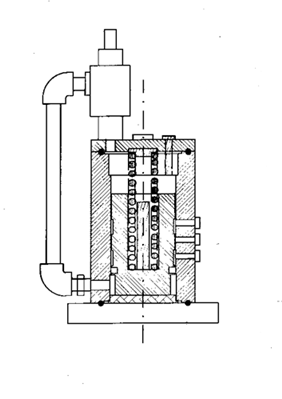

How it works
Compressed air keeps the piston against the spring
When air is rapidly vented,the spring fires the piston against
the bottom plate. As air is reapplied, the piston is reloaded.

Maintenance
Vibrator must be securely mounted to a flat smooth surface.
Use locknuts, locking washers or loctite when tightening bolts.

The Impactor can be operated with dry compressed air
and,therefore, not lubricated.
If compressed air containing oil is selected, then such air
must be always used since impactor factory added lubrication
will be flushed out as the result of the air containing oil.

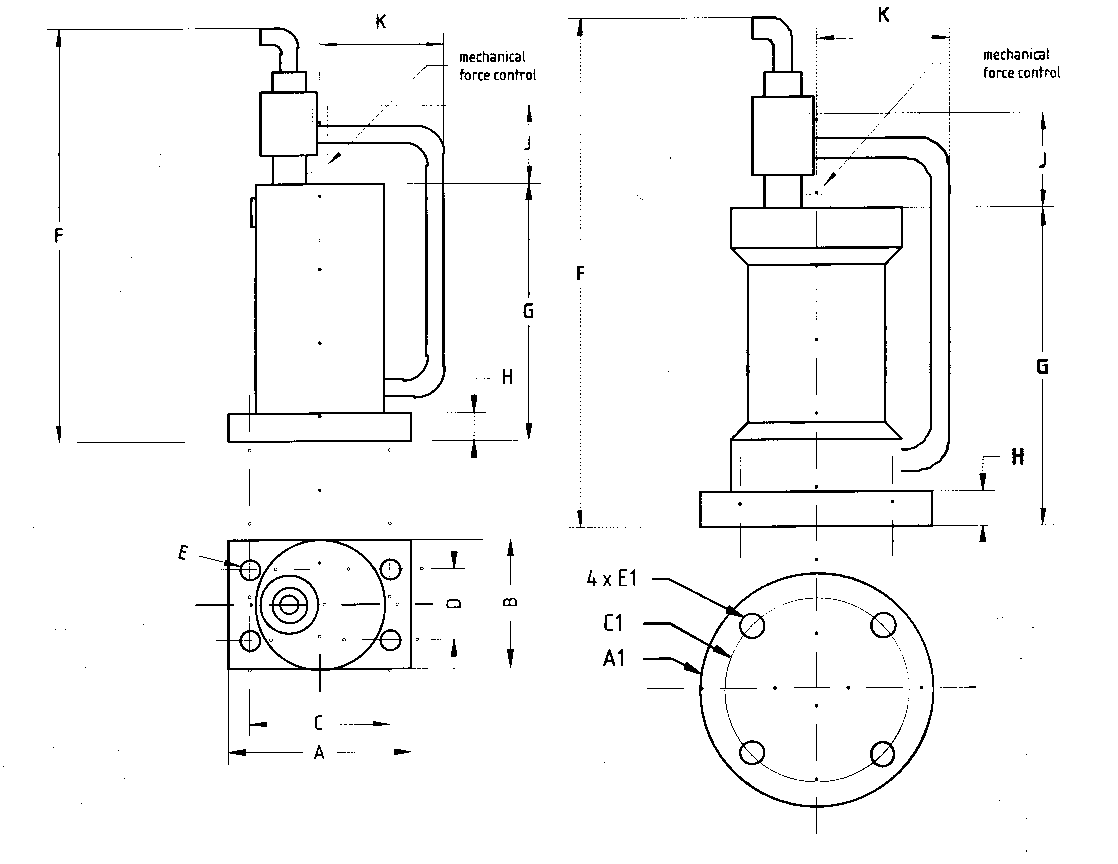

DIMENSIONS
MODEL
A
A1
B
C
C1
D
E
E1
F
G
H
J
K
FKL 100
5.12”
---
3.54”
3.93”
---
1.97”
0.51”
---
12”
7.16”
3/4”
2.16”
4.0”
FKL 150
---
5.51”
---
---
4.53”
---
---
0.53”
15”
11.7”
7/8”
2.16”
4.3”
FKL 200
---
7.08”
---
---
5.98”
---
---
0.67”
16”
10.8”
1”
2.16”
5.1”



TECHNICAL DATA
Housing Machined Aluminum Case
Piston Hardened Steel
Base Plate Aluminum with an integrated noise reducing plastic impact plate
Air Type: Clean, 5 µm filter required
Air Supply: 60 PSI
Lubrication: Always dry air or always lubricated air
Max Ambient Temperature: 120° F (=50° C)
Noise Level Range: 80 dBA or lower
Timer Infinitely Adjustable
Solenoid valve Normally Open 3 Ports
