Stainless Steel Vibrator Title

The ultimate vibrator that can be used in the most demanding
and extreme environments. With the 316L Stainless Steel Construction
your plant will never face any contamination problem
no matter which products you will use

Vibrator Cascade main picture

FEATURES

  • All housing and parts in contact
    are in Stainless Steel 316L
  • Sanitary Finishing
  • Smooth housing surface
  • No paint to flake off.
  • Noise level never exceeds 75 dba
  • No lubrication required.
  • Easy cleaning
  • Corrosion free
  • Contamination free



PERFORMANCE DATA
MODEL
FREQUENCY
FORCE OUTPUT
AIR CONSUMPTION

30 PSI
60 PSI
90 PSI
30 PSI
60 PSI
90 PSI
30 PSI
60 PSI
90 PSI

vpm
vpm
vpm
lbs
lbs
lbs
cfm
cfm
cfm
GT 10 SS
27000
34000
37000
190
290
520
2
3
4
GT 16 SS
16500
21000
23000
290
450
700
4
7
10
GT 25 SS
11500
16000
18000
450
780
1100
6
12
16

BENEFITS

  • Stainless Steel body construction and
    absence of airline lubrication allows
    use in many difficult environments
  • Will not rust in extremely humid conditions.
  • Resistant to highly corrosive and
    aggressive environments.
  • Being oil free, there is no oil mist
    discharged in the surrounding air.

Vibrator front page view

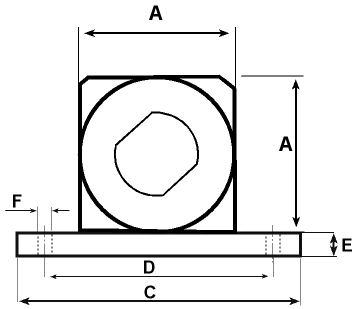

skematic vibrator with plate

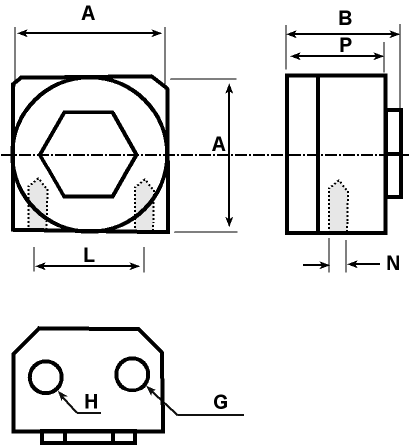

skematic vibrator with no plate

DIMENSIONS
MODEL
A
B
C
D
E
F
G /H
L
N
P
Weight
GT 10 SS
1.93”
1.45”
3.39”
2.68”
0.27”
0.28”
1/8”
1.42”
M6
1.26”
1.5 lbs
GT 16 SS
2.52”
1.77”
4.33”
3.54”
0.39”
0.35”
1/4”
1.89”
M8
1.53”
2.2 lbs
GT 25 SS
3.07”
2.16”
4.96”
4.09”
0.39”
0.35”
1/4”
2.36”
M10
1.93”
4.0 lbs



MAIN INDUSTRIES SERVED

Pharmaceutical --- Chemical---Food-----Bakery----Plastic



TECHNICAL DATA
Unbalance Weight : Aluminium Rotor with positive and negative unbalance
(brass or heavy metal)
Lubrication : not necessary
Air Supply : 30 to 90 PSI (2 to 6 bar )
Air Type : Clean, use of filter (40 µm or less) recommended
Body : 316 L Stainless Steel
End Caps : 316 L Stainless Steel
Surface: Polished
Max Temperature : 250°F=120°C (or up to 450°F if properly modified)
Noise Level Range : 60 to 75 dBA with muffler
