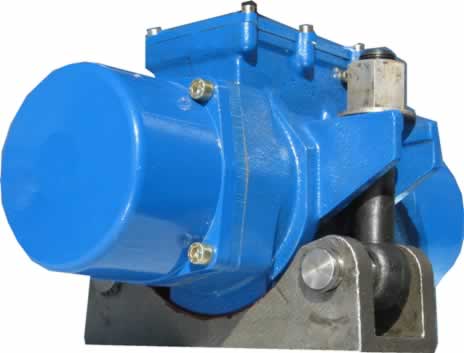

AFC Vibrators were designed
to maximize the speed of mounting

and dismounting.

They make use of a quick disconnect
cradle lug bracket.
Whenever there is a need to move electric vibrators from concrete mold to concrete mold, the ease of the AFC Quick Mount Cradle Lug Bracket Attachment is unrivaled.

PERFORMANCE
MODEL

AFC 36/1600
AFC 36/3000
Force Output
lbs
1870
3168
Frame Size

AF 10C
AF 15C
Speed
rpm
3600
3600
Weight
lbs
44
63
Input Power
H.P.
1.15
1.5
Amp Draw 230 V
amps
2.2
3
Amp Draw 460 V
amps
1.1
1.5
Amp Draw 48 V
amps
12
16
Lug Bracket Model

M 23
M 23
Bearing Type

6307
NJ 306
Bearing Life (at max force)
hours
1450
3100



.


So easy to handle!

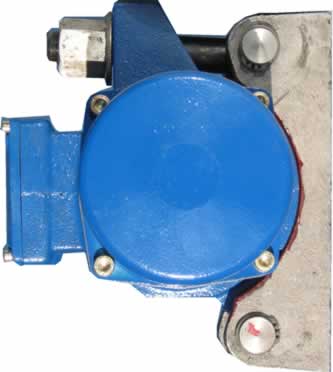

The alignment is automatic with the vibrator claw
inserted into the lower end of the cradle bracket.
This also holds the vibrator's weight.
No need to insert bolts, washers and nuts each times
you have to move a vibrator.
The AFC System has only one nut to tighten needing
only one person to change a vibrator.
Thus time saving in relocating is as much as 70%
compared with the standard vibrator.
Besides the reduced cost of labor, this leads to a much
lower downtime where most of the time is used
in pouring concrete instead of tightening bolts!

I



DIMENSIONS
MODEL
A
B
C
D
E
F
G
L
AFC/36/1600
14.02”
8.58”
3.31”
5.71”
9.45”
3.23”
4.80”
4.96”
AFC/36/3000
15.83”
8.86”
3.31”
5.71”
9.45”
4.17”
5.28”
5.5”

POWER SUPPLY

In addition to the standard 230-460 Volts, the AFC System can be supplied with 48 Volts, which is advisable for use in wet environments where accidental contact with high voltage could be very hazardous to the operator.
